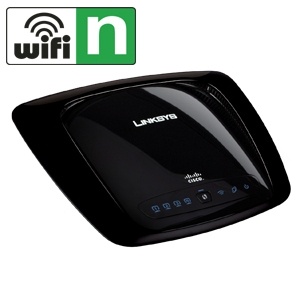

مودم wag320n لینکسیس

Model: WAG320N
Standards: Draft 802.11N, 802.11g, 802.11b, 802.3u, G.992.1 (g.dmt), G.992.2 (g.lite), G.992.3/4 (ADSL2), G.992.3 Annex L (ADSL2 L), G.992.3 Annex M (ADSL2 M), G.992.5 (ADSL2+), G.992.5 Annex M (ADSL2+ M), G.994.1 (G.hs), G.996.1 (G.test), T1.413i2
Ports: Power, DSL, Ethernet (1-4)
Buttons: Reset, Wi-Fi Protected Setup
LEDs: Power, Wireless, Ethernet (1-4), DSL, Internet, Ethernet WAN
Cabling Type: CAT 5 UTP, RJ-11, RJ-45
Antennas: 3
Connector Type: Internal
Detachable: No
RF Pwr (EIRP) in dBm: 2.4GHz
802.11b: 17.5+/-1.5dBm Typical @ Normal Temp Range
802.11g: 17.5+/-1.5dBmTypical @ Normal Temp Range
Wireless-N 20MHz: 13.5+/-1.5dBm Typical @ Normal Temp Range
Wireless-N 40MHz: 13.5+/-1.5dBm Typical @ Normal Temp Range
5GHz
802.11a: 13.5+/-1.5dBmTypical @ Normal Temp Range
Wireless-N 20MHz: 8.5+/-1.5dBm Typical @ Normal Temp Range
Wireless-N 40MHz: 11+/-1.5dBmTypical @ Normal Temp Range
Antenna Gain in dBi: 2.4GHz: RIFA 1 & RIFA 2 & RIFA 3 <= 4dBi (Typical)
5GHz: RIFA 1 & RIFA 2 & RIFA 3 <= 3.5dBi (Typical)
UPnP able/cert: Able
Security Features: Password protected configuration for web access
PAP and CHAP authentication
SPI Firewall
Denial of Service (DoS) Prevention
URL filtering, and keyword, Java, ActiveX, Proxy, Cookie blocking
ToD filter (Blocks Access by Time)
VPN Passthrough for IPSec, PPTP, and L2TP Protocols
128, 64 bits WEP with Passphrase WEP key generation
WPA and WPA2 Personal and Enterprise
Trend Micro
SSID Broadcast Disable
Access restriction by MAC and IP addresses

Key Features

Complies with IEEE draft 802.11n version 2.0 standards
Selectable radio band: 2.4 or 5GHz
Blazing fast wireless speeds for high bandwidth applications such as video streaming or file sharing
Performance Investment Protection: Compatibility with Wireless-A (802.11a), Wireless-B (802.11b) and Wireless-G (802.11g) Standards
All ports support Gigabit speed and Auto-Crossover (MDI/MDI-X) -- no need for crossover cables. Port 1 can be configured as WAN port.
Wireless Access Lists to enhance wireless security, support WPA and WPA2 and Wi-Fi Protected Setup
Built-in Storage Link, transform any USB storage device into a NAS
Built-in Media Server, streams music, video, and photos to any UPnP compatible media adapter
MIMO technology uses multiple radios to create a robust signal that travels farther and faster, with reduced dead spots.
Supports Trend Micro feature
Supports Yahoo search toolbar

Environmental Details

Dimensions 202 x 34 x 160 mm
Weight 362 g
Power 12V 1.25A
Certiication FCC, CE, IC-03, Wi-fi, A-Tick, Telepermit.
Operating Temp. 0 to 40° C (32 to 104° F)
Storage Temp. -20° C to 70° C (-4 to 158° F)
Operating Humidity 10 to 85% Noncondensing
Storage Humidity 5 to 90% Noncondensing

Package Contents

Wireless-N Home ADSL2+ Modem Router
Setup Software and User Guide on CD-ROM
Ethernet Network Cable
Telephone Cable (Annex A)
Power Adapter

Minimum Requirements

Internet Explorer 6.0, Safari 3.0, or Firefox 1.0 for web-based configuration
PC with a Network Adapter and the TCP/IP Protocol installed
CD-ROM drive
Network Magic software and Setup Wizard require up-to-date Windows XP, Vista, or Vista 64-bit Edition
Setup Wizard also runs under MAC OS X 10.4 or higher
Activated ADSL line

Maximum performance derived from IEEE Standard 802.11 specifications. Actual performance can vary, including lower wireless network capacity, data throughput rate, range and coverage. Performance depends on many factors, conditions and variables, including distance from the access point, volume of network traffic, building materials and construction, operating system used, mix of wireless products used, interference and other adverse conditions.
