مبدل فیبر نوریCONVERTOR FIBR 2CH - فروش ویژه دوربین مدار بسته

منو

دستگاه مبدل فیبرنوری

قيمت: ۸۰۰,۰۰۰ تومان

دستگاه مبدل فیبرنوری » دستگاه مبدل فیبرنوری

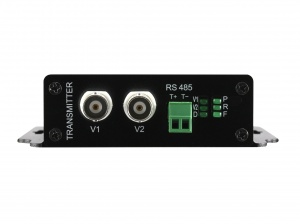

مبدل فیبر نوریCONVERTOR FIBR 2CH

Video Specifications

Port: 2
Video interface: BNC
Video in/ output impedance: 75Ώ
Video in/ output voltage: (typical)1.0Vp-p max1.5Vp-p
Video Broad Band: 5-8MHZ
Differenial gain: <1% (typical)
Differenial phase: < 0.6º
SNR: ≥ 68dB
Field gradient: < 0.5%

Data Characteristics

Physical connector: Phoenix contact (DATA)
Data connector: RS-485/422 , RS232
Channells of data: forward and reverse path data multi-chaaels
Interface port: industrial standard interface port

Environment Specifications

Working temperature ( c ): -30 ~ +75
Storage temperature ( C ): -40 ~ +85
Relative humidity: 0 ~ 95%

Optical Budget

Fiber type: MM SM SM SM
Budget: 20dBm 20dBm 22dBm 25dBm
Transmission Distance: 2km 20km 40km 60km

Other Specifications

Dimension(mm): 143x107x28
Rated voltage: AC220V/50Hz
Power supply: DC5V/2A
Power: ≤5W
Sampling rate: 15MHZ
MTBF: ≥10,0000h
