مودم جیبی USB
مودم جیبی USB » مودم جیبی USB

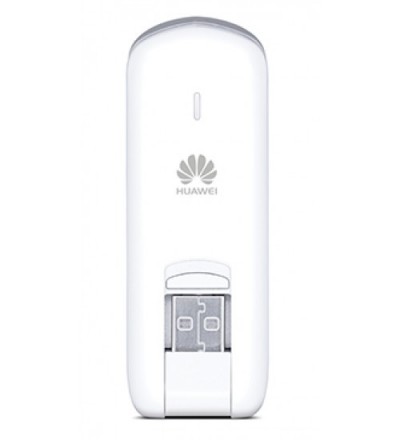

4G مودم سیمکارتی همراه مدل E3276 Huawei
4G مودم همراه سیمکارتی همراه مدل E3276 Huawei
مودم جدید فروشگاه مودم شاپ E3276 Huawei اولین مودم 4G این مجموعه هستش و برای اولین بار وارد جمع مودم های این فروشگاه شده . این مودم قدرتمند 4G تا 100 مگابایت سرعت دانلود داره ، البیته با سیمکارته ای 4G و تا 50 مگابایت سرعت رو با سیمکارت های 3G پشتیبانی می کنه . از امکانات دیگه این مودم که از همه مهمتره اینه که این مودم Dual Carrier هستش یعنی 2 تا سوییچ آنتن خارجی داره که می تونید 2 آنت اکسترنال بهش وصل کنید .امکانات فنی دستگاه رو در زیر براتون گذاشتیم :
Huawei E3276 4G LTE Cat4 150Mbps USB Modem is the World's first LTE Cat4 Stick, and allows speeds of over 100 Mbit/s download - precisely 150 MBit/s on LTE FDD network. The FDD-LTE modem operates on the 800/900/1800/2100/2600MHz band with GSM and UMTS backward. The UMTS network can achieve up to 84 Mbps download speed due to DC-HSPA+ technology. There are many variants for HUAWEI E3276 Cat 4 LTE Surfstick, such as HUAWEI E3276s-150, HUAWEI E3276s-151, HUAWEI E3276s-152, HUAWEI E3276s-210, HUAWEI E3276s-500, HUAWEI E3276s-601 and HUAWEI E3276s-920 etc..
Below is the 4G LTE Sprctrum & Frequency band that HUAWEI E3276 could support by its variants:
HUAWEI E3276s-152:
* 4G LTE FDD 800/2600MHz
* 3G UMTS 900/1900/2100MHz
* GSM 850/900/1800/1900MHz
HUAWEI E3276s-151:
* 4G LTE FDD (DD800/1700/1800/2600MHz)
* 3G UMTS 900/1900/2100MHz
* GSM 850/900/1800/1900MHz
Huawei E3276s-150(Vodafone K5007 and Megafon M150-1):
* 4G LTE FDD (DD800/900/1800/2100/2600MHz)
* 3G UMTS 900/1900/2100MHz
* GSM 850/900/1800/1900MHz
HUAWEI E3276s-861:
* 4G LTE FDD 2600MHz TDD 1900/2300/2600MHz
* 3G UMTS 900/2100MHz & TD-SCDMA 1900/2100MHz
* GSM 850/900/1800/1900MHz
HUAWEI E3276s-210: Band 3/7/20/38 (FDD 800/1800/2600 TDD 2600MHz)
Huawei E3276s-601: Band 3/7/40 (FDD 1800/2600MHz & TDD 2300MHz)
Huawei E3276s-920:
* 4G Band 38/40 (TDD 2300/2600MHz)
* 3G DC-HSPA+ 900/2100MHz
* GSM 850/900/1800/1900MHz
HUAWEI E3276s-500
HUAWEI E3276s-503
HUAWEI E3276s-505
The E3276 4G USB Stick has the Plug & Access function, which means you can plug in the stick and just start surfing, no drivers needed. Per the test from HUAWEI, the connection time is within 15 seconds.
HUAWEI E3276 4g lte modem with 150Mbps download speed
Huawei E3276 100Mbps LTE Surfstick has a proprietary chip that emits
less heat than previous modems, which results in lower power consumption
and improved performance and longevity. It supports all LTE frequencies
in Sweden, the 4G external antenna makes it possible to improve
reception in areas with poor coverage. The LTE modem also supports 3G
and 2G in areas without 4G coverage. Huawei E3276 4G Surfstick is easily
installed, and supports the most common operating systems. The new
upgrade version of driver is not available yet. Perhaps HUAWEI is now
trying.
HUAWEI E3276 each part indication
HUAWEI E3276 4G LTE Surfstick Technical Specifications:
Network bands:
* LTE FDD: 800/900/1800/2100/2600 Mhz
* UMTS: 2100/AWS/900/1900
* GSM: 850/900/1800/1900
* LTE Cat4 DL at up to 150Mbps
* LTE UL up to 50Mbps
* External Antenna Interface, Receive Diversity
* USB 2.0 High Speed
* SIM/USIM card: standard 6-pin SIM card interface
* Micro SD Card Slot
* Dimensions: 92mm x 32mm x 14mm
* Weight: 30g
* OS: Windows XP/Vista/7, Linux, Mac OS.
