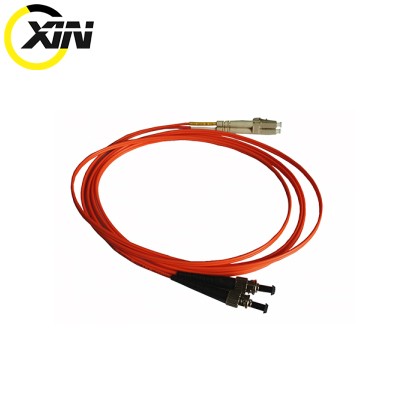

OXIN Fiber Optic Patch Cord

100% tested *

(LC Connector Dimensions: 10.75mm Height x 12.5mm Width x 50mm Depth (with installed duplex clip *

Maximum Connector Loss: 0.50 dB *

Typical Connector Loss: 0.30 dB *

Typical Return Loss: -55 dB *

Jacket OD: 2 mm *

(Installation Tensile Load: 100 N (445 lbs *

(Long-Term Tensile Load: 50 N (222 lbs *

Maximum Tensile Load: 100 N/cm *

(Installation (Loaded) Minimum Bend Radius: 5.0cm (1.97in *

(Long-Term (Unloaded) Minimum Bend Radius: 3.0cm (1.2in *

Crush Resistance: 750 N/cm *

Impact Resistance: 1,000 cycles *

Flex Resistance: 5,000 cycles *

Attenuation at 1550 nm: 0.25 dB/km *

Attenuation at 1310 nm: 0.35 dB/km *

Operating Temperature: -20°C to +70°C *

OXIN Fiber Optic Patch Cord
With cable SM – MM – OM4 – OM3 With connectors SC, FC, LC, ST, DIN
