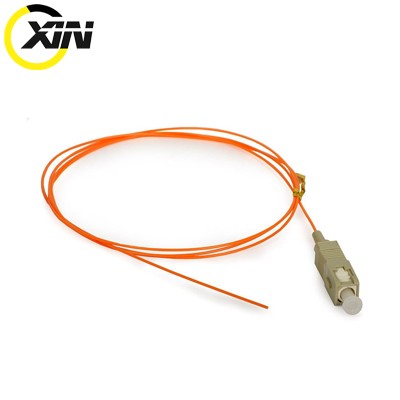

OXIN Fiber Optic Pigtail
100% tested *
(LC Connector Dimensions: 10.75mm Height x 12.5mm Width x 50mm Depth (with installed duplex clip *
Maximum Connector Loss: 0.50 dB *
Typical Connector Loss: 0.30 dB *
Typical Return Loss: -55 dB *
Jacket OD: 2 mm *
(Installation Tensile Load: 100 N (445 lbs *
(Long-Term Tensile Load: 50 N (222 lbs *
Maximum Tensile Load: 100 N/cm *
(Installation (Loaded) Minimum Bend Radius: 5.0cm (1.97in *
(Long-Term (Unloaded) Minimum Bend Radius: 3.0cm (1.2inx *
Crush Resistance: 750 N/cm *
Impact Resistance: 1,000 cycles *
Flex Resistance: 5,000 cycles *
Attenuation at 1550 nm: 0.25 dB/km *
Attenuation at 1310 nm: 0.35 dB/km *
Operating Temperature: -20°C to +70°C *
Oxin fiber optic pigtails provide the ideal medium for all your fiber optic interconnect applications. They are designed, manufactured and tested according to protocol and performance dictated ...
