OTDR
Test and Measurement » OTDR

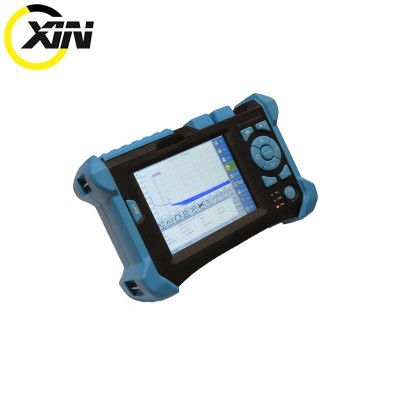

OXIN OTA-100
Wavelength: Singlemode: 1310/1550nm, 32/30dB *
Built-in Visible Fault Locator-VFL *
<2m extra-short event dead zone *
Up to 38/36dB High Dynamic Range *
Distance Range: 4,8,16,32,64,128,256km *
Pulse with: 10,30,80,160,320,640,1280,5120,1024ns *
640×480, 6٫5 inch TFT-LCD-touch screen *
USB interfaces, supporting USB stick and printer and direct cable download to PC via Active Sync *
Memory capacity >800 traces *
Built-in lithium battery with high capacity for over 8 hours of operating life *
Display: Color LCD *
One year Warranty *
OTA series Optical Time Domain Reflectometer (OTDR) is the new generation of intelligent meter for the detection of fiber communications systems
OTA series Optical Time Domain Reflectometer (OTDR) is the new generation of intelligent meter for the detection of fiber communications systems
OTA-110 Series OTDR developed by OXIN, which meet the needs on the wide range of measurement by FTTx, Metropolitan Area Network, Backbone Network and other optical networks
OTA-100 Series OTDR developed by OXIN, which meet the needs on the wide range of measurement by FTTx, Metropolitan Area Network, Backbone Network and other optical networks
